What is the primary advantage of a helical gear over a spur gear in power transmission applications?

Understanding Gear Basics: Spur vs. Helical

Gears are fundamental components in mechanical power transmission systems, responsible for transferring motion and power between rotating shafts. Among the most common types are spur gears and helical gears, each with distinct characteristics and applications. While spur gears are widely used for their simplicity, helical gears offer a crucial advantage that often makes them the preferred choice in demanding power transmission scenarios.

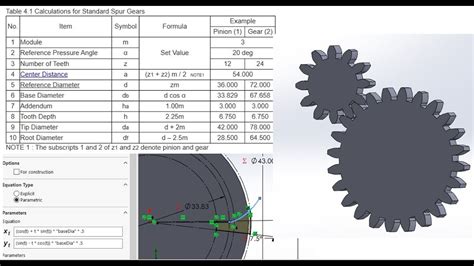

The Design of Spur Gears

Spur gears are characterized by straight teeth that are cut parallel to the axis of rotation. When two spur gears mesh, the contact between their teeth occurs instantaneously along the entire face width. This sudden engagement, while effective for basic power transfer, can lead to several challenges. Spur gears are known for their relatively high noise levels, particularly at higher speeds, and are prone to vibrations and impact loads due to the abrupt nature of their tooth meshing.

Introducing Helical Gears

In contrast, helical gears feature teeth that are cut at an angle to the gear’s axis of rotation, forming a helix. This angled design is the key to their superior performance. When two helical gears mesh, the engagement begins at one end of the tooth and progresses gradually across the tooth face. This progressive contact fundamentally alters the dynamics of power transmission compared to spur gears.

The Primary Advantage: Smoother, Quieter Operation

The foremost advantage of helical gears lies in their significantly smoother and quieter operation. Because the teeth engage gradually, there is always more than one pair of teeth in contact, and the load is picked up and released progressively. This continuous and overlapping contact reduces the impact shock that is characteristic of spur gears. The result is a substantial reduction in noise and vibration, making helical gears ideal for applications where acoustic performance and operational smoothness are critical.

This gradual engagement also leads to a more uniform distribution of load across the gear teeth. Instead of the entire tooth face encountering the load at once, the force is spread out over a longer duration and across multiple teeth, reducing stress concentrations and minimizing wear. This characteristic is particularly beneficial in high-speed and heavy-load applications where vibration and noise can lead to premature failure and operational discomfort.

Enhanced Load Capacity and Durability

Beyond noise reduction, the continuous and distributed tooth contact in helical gears also translates to a higher load-carrying capacity compared to spur gears of the same size and material. The increased contact ratio, meaning the average number of teeth in contact, allows for more robust power transmission. This inherent strength and better load distribution contribute to greater durability and extended service life for helical gears, even under demanding conditions.

Addressing Axial Thrust

It is important to note that the angled teeth of helical gears introduce an axial force, or thrust, along the gear shaft. This axial thrust must be accommodated by appropriate thrust bearings in the system, adding a layer of complexity to the design. In applications where this axial thrust is undesirable or difficult to manage, double helical (herringbone) gears can be used, which feature two sets of helical teeth cut in opposite directions, effectively canceling out the axial forces.

Conclusion

In summary, while spur gears remain suitable for simple, low-speed, or less noise-sensitive applications, the primary advantage of helical gears in power transmission is their ability to provide significantly smoother, quieter, and more efficient operation. This stems from their unique angled tooth design, which facilitates gradual and continuous tooth engagement, leading to reduced vibration, lower noise levels, and enhanced load-carrying capacity. Despite the added consideration of axial thrust, the benefits of helical gears often outweigh the complexities, making them the preferred choice for a vast array of modern industrial and automotive power transmission systems where performance, durability, and quiet operation are paramount.
